X18 ATC

Armoured Troop Carrier

40

Max Speed ( Knots )

18.75

Length ( m )

30

Cruising Speed

60

Troops

Spesification

General
Hull Material
: Full Carbon Fibre, Vacuum Infused
Dimensions
Length Over All
: 18.75m
Beam Over All
: 7.50m
Draught
: 0.85m
Propulsion
Main Engines
: 2 x 1700HP MTU V12 2000M86 DIESEL Engine
Propulsor
: 2 x MJP 550 Waterjet
Armament
Main Armament
: Cockerill 3030 turret
Secondary
: 2 x 12.7mm Gun
Communications
VHF Radio, SBB Radio and Datalink Option
Navigation and ship Systems
TRANSASS:
2 WECDIS stations
1 Radar Station
1 Conning Station
Transas WECIDS trackballs
Transas WECIDS keyboards
24inch Monitors
2 GPS
1 AIS
GMDSS A1
Double LAN Network with all signals and integration duplicated Weather Station
Gyro iXblue
Magnetic Compass
Autopilot
Integration to waterjet, engines, SAFRAN, cameras, CMI, LEMUR RWS

Description

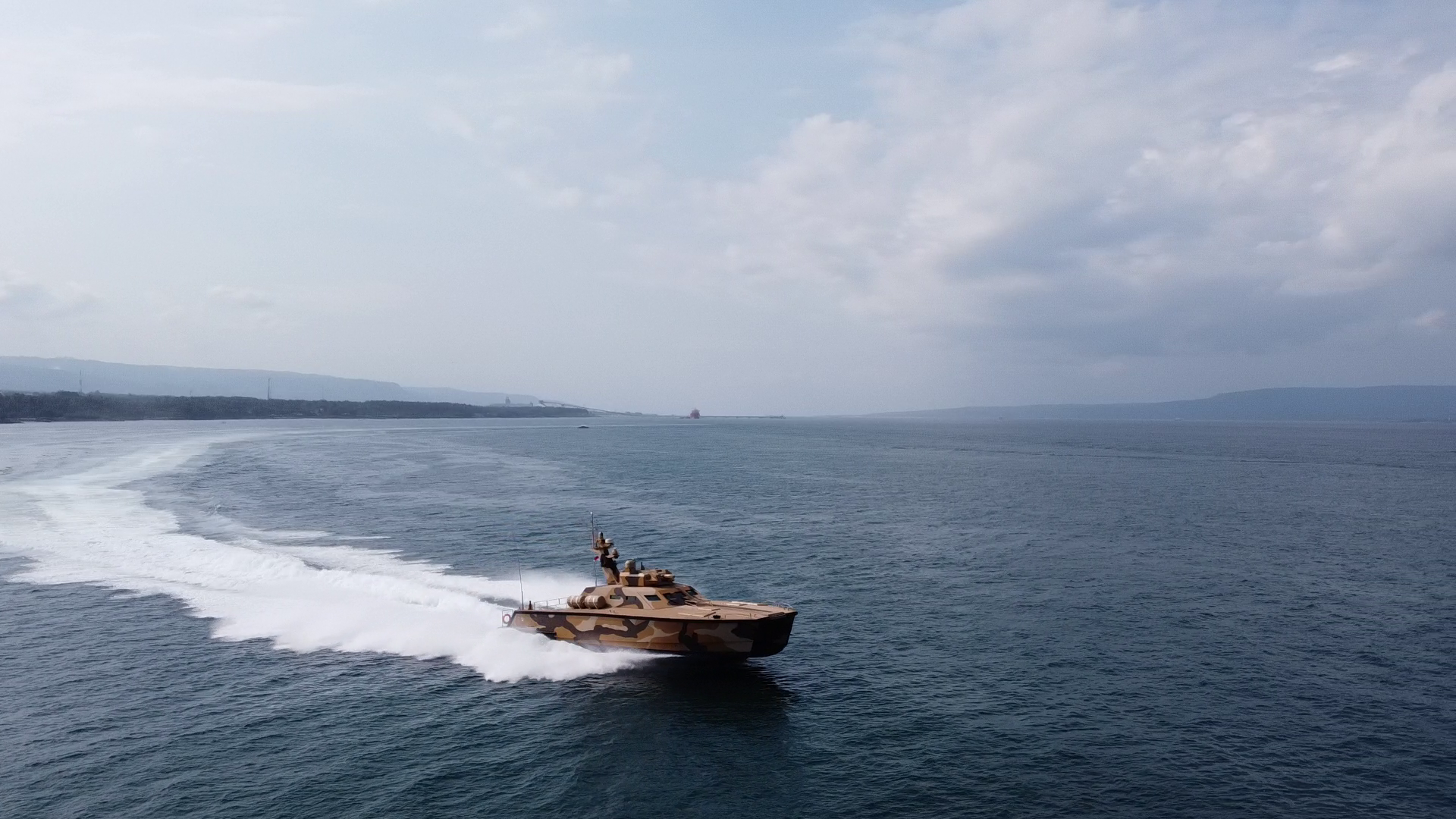

The X18 ATC (Armoured Troop Carrier) is an innovative, fast, stealthy, and highly manouverable catamaran design that provides a stable weapons platform for close-in and long range fire support in normally inaccessible coastal and riverine environments.

Fitted with high performance diesel engines and water jet propulsion, the twin hull configuration has excellent sea keeping properties and the addess advantage of shallow draft.

Giving in the ability to execute beach and river landings and insert or extract squads of up to 60 Special Forces or Marines. The X18 ATC has a crew of 5, and will also carry a high-speed Interdiction inflatable Raiding craft for boarding and SEAL insertion.

The Cockerill 3030 is a unique multi mission, light and protected remote weapon station with innovative roof system that allows unique observation. It has an anti tank and anti bunker rocket system. It's panoramic sight integrated system is slaved to the cannon for infantry support configuration. Gun elevation goes from -10 degree up to +60 degree. The ballistic protection is up to level 4 STANAG 4569. Ammunition loading is under armored and has single/dual feeder with a minimun of 155 ready-rounds.
