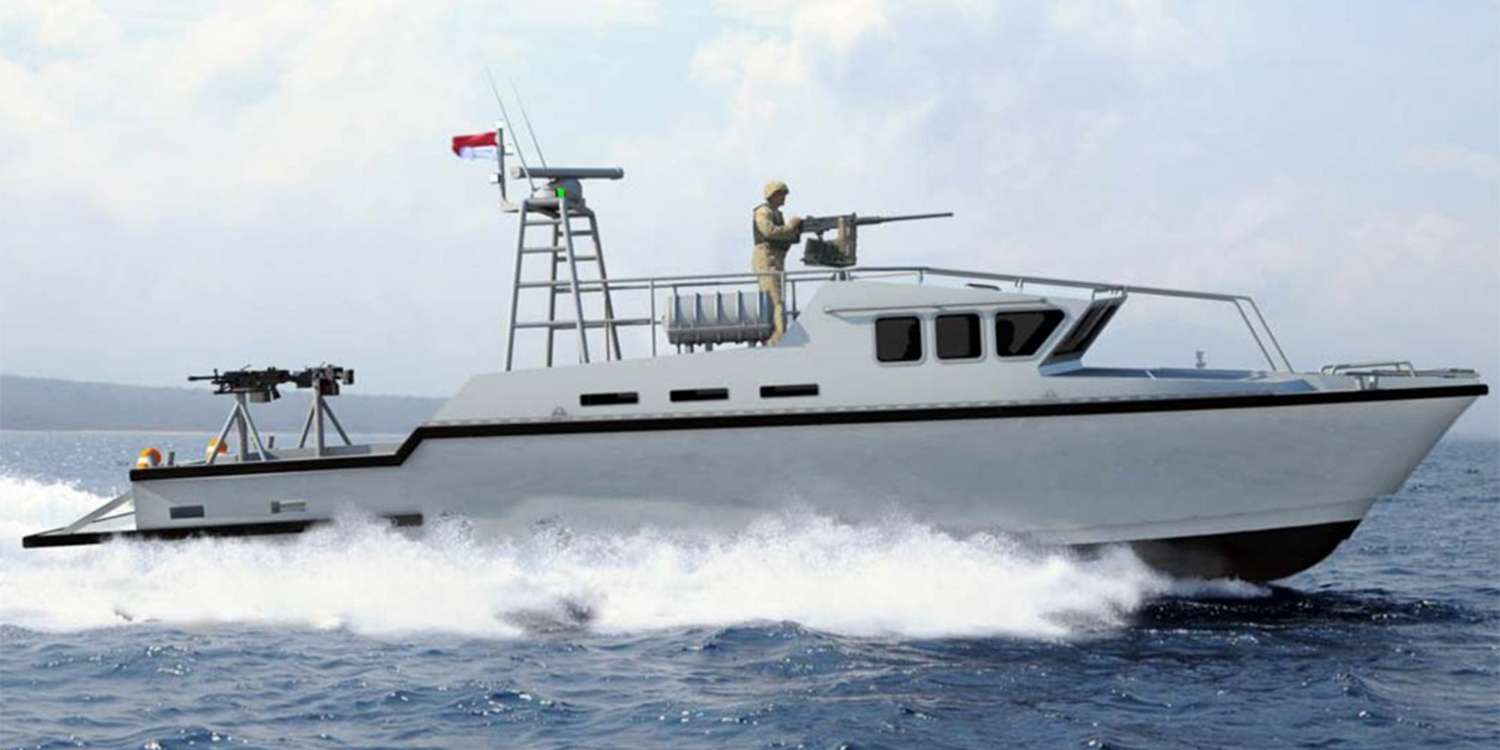

X15 FAST PATROL BOAT

Get best Performance from X15 FAST PATROL BOAT

Max Speed ( Knots )

15.37

Length ( m )

persons Crew

2,100

Fuel Capacity (l)

Spesification

General

Basic Functions

: Patrol, Interdiction, Amphibious forces insertion

Hull Material

: Infused Vinylester Composite

Dimensions

Length Ovaer All

: 15.36 m

Beam Over All

: 4.51 m

Draught

: 0.72 m

Displacement

: 14,500 kg

Fuel Capacity

: 2,100 L

Fresh Water

: 250 L

Propulsion

Main Engines

: 2 x Diessel Engine 750 HP

Propulsion

: Hamilton Waterjet HJ - 364

Performance

Speed (Max Power)

: 40+ knots (heavy ship)

Speed (Cruising)

: 35 knots

Range

: 340 Nm

Accomodation

14 Persons

Deck Equipment

Gun Mounting

: 12.7 mm adn 7.2 mm cal GPMG

Electrical Equipment

Generator

: 6kW - 9kW

Life Saving Equipment

Fire Extinguisher

: Auto FE, Portable Powder FE

Rescue Equipment

: Life jackets, MOB Recovery Sing

Nautical Equipment

Radar, GPS, AIS, C4 Systems and Sensors

Communications

VHF Radio, SBB Radio, Tactical Radio Voice / Data

Description

The X15 is a development of a well proven design with 11 m, 16 m and 16.5 m variants. 32 boats in various guises are operated by the Malaysian Government, and two 11 m models built by North Sea Boats are in service with the Timor Leste Navy

The X15 has been optimized for tropical conditions, and has a hull-form that combines good sea-keeping proper- ties with a shallow draught, making the X15 ideal for lit- toral inshore and estuarine operations. Experience at the family owned company in Sweden which built over 200 units of the CB9O craft now in operation, allows NSB to incorporate knowledge and improvements into the X15.

With a foredeck hatch and beaching ladder it is suited amphibious operations, plus roles as a rapid response interceptor, in regular patrol work, reconnaissance, sur- veillance, law enforcement, counter-piracy, medical evacuations and rescue operations.
